State and Properties#

There is no explicit difference between State and Property. Compared with React it's much more simpler. A state still exists and it supports smart rendering.

State#

To declare a state object use a generic like this:

export class MainComponent extends BaseComponent<{ cnt: number}> {
  // ... omitted for brevity
}

The State generic is optional. If there is no state necessary just use any or an empty object such as {}.

Now a property and a function are available:

• data (property): Returns the instance of the data object and contains all properties defined in the generic.
• setData(prop: string, val: any) (function): Sets a value and if the value differs re-renders the component.

A simple counter shows how to use:

export class CounterComponent extends BaseComponent<{ cnt: number }> {

  constructor() {
    super();
    this.setData('cnt',  10);
  }

  clickMeAdd(v: number) {
    this.setData('cnt', this.data.cnt + 1);
  }

  clickMeSub(v: number) {
    this.setData('cnt', this.data.cnt - 1);
  }

  render() {
    return (
      <>
        <div>
          <button type='button' n-on-click={e => this.clickMeAdd(e)}>
            Add 1
          </button>
          <button type='button' n-on-click={e => this.clickMeSub(e)}>
            Sub 1
          </button>
        </div>
        <pre style='border: 1px solid gray;'>{ this.data.cnt }</pre>
      </>
    );
  }
}

However, changing this.data directly would be sufficient, too. The underlying object is a Proxy and can handle value changes automatically. The explicit function call is available to have a more dynamic approach through the property parameter.

Properties#

Property names in JavaScript are in camel case while HTML attribute names are in kebab case (dash-separated) to match HTML standards. For example, a JavaScript property named itemName maps to an HTML attribute named item-name.

Don’t start a property name with these characters:

• on (for example, onClick)
• aria (for example, ariaDescribedby)
• data (for example, dataProperty)

Don’t use these reserved words for property names.

• slot
• part
• is

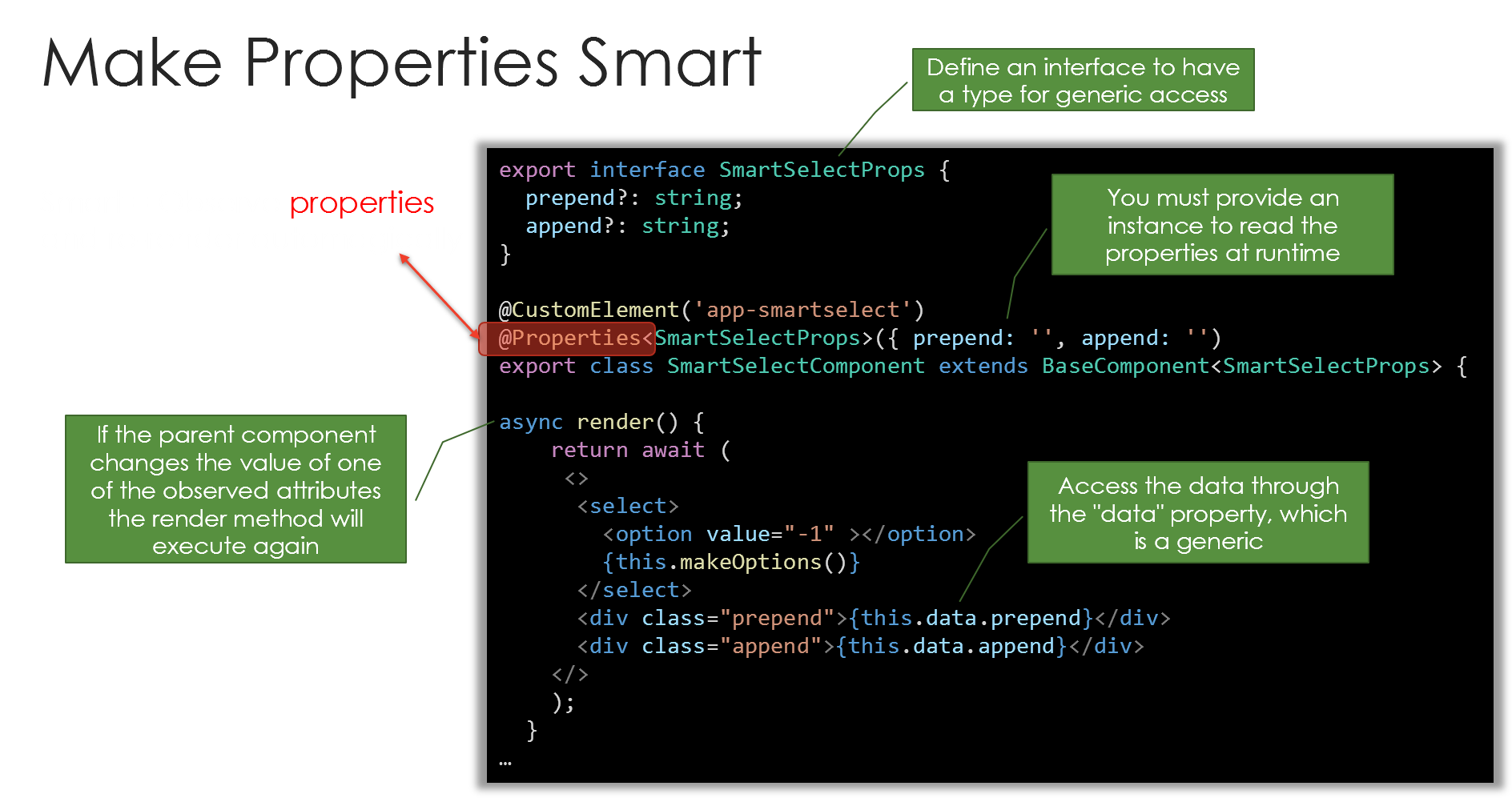

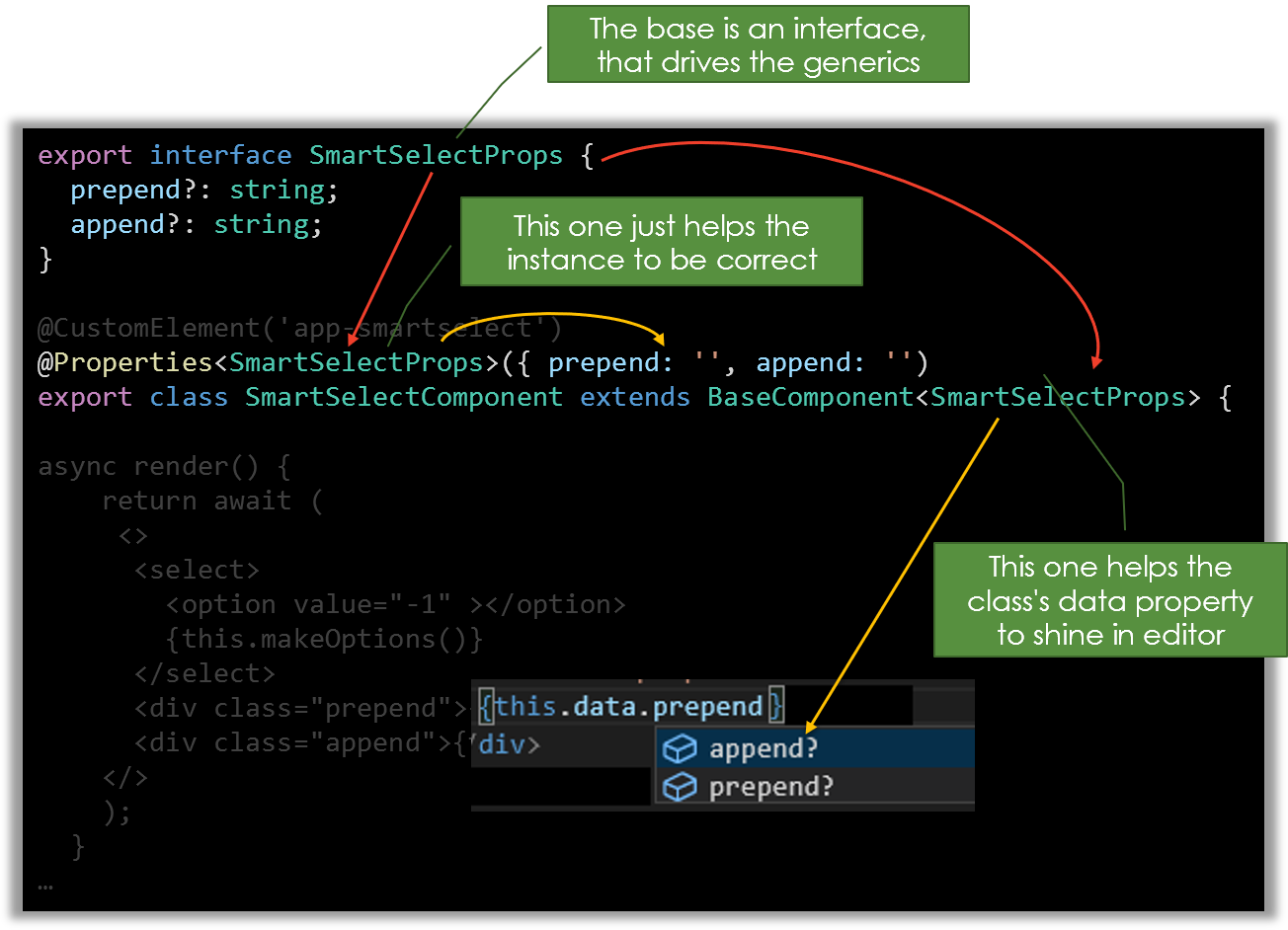

To use properties, you must define those. Each property is automatically part of the state and once it changes, the component re-renders.

@CustomElement('app-btn')
@Properties<{ title: string }>({ title: 'Default' })
export class ButtonComponent extends BaseComponent<{ title: string, cnt: number }> {
  // ... omitted for brevity
}

The initializer with default's is not optional, you must provide an object that matches the generic.

This is how you use such a component (part of the render method):

const someTitle='Demo';
return (<app-btn title={someTitle} />);

The @Properties decorator defines all properties, that are now monitored (observed) and hence the value is evaluated and rendered. If the value changes the component renders itself automatically.

Accessing Properties#

The access using the property with data is internally and externally available. That means, you can retrieve a component and set values like this:

(this.querySelector('[data-demo-button]') as any)
    .data
    .text = 'Some demo data';

As with setData internally this will trigger the renderer to re-render the content with the new values, but in this case the trigger is outside the component.

Data Types#

Web Components have the restriction that an attribute can transport string values only. This would lead to "[Object object]" for other types.

@nyaf overcomes this restriction with a smart attribute handling.

That means the object is being recognized and stringified to JSON. Additionally, a custom attribute with the name "__name__" is written. Assume your value is written like shown below:

<app-comp test={[{"obj": 1}, {"obj": 2}]}></app-comp>

The rendered component would look like this:

<app-comp test="[{"obj": 1}, {"obj": 2}]" n-type-test="array"></app-comp>

Apparently the double double quotes work just fine. However, the content is now a string. If you do operations on this it will not resolve as the array it was before. Here the second attribute will trigger a different behavior. The hook for the data Proxy used internally is now applying a JSON.parse and returns the former object. Also, once set again, the incoming value is checked for being an object and stringified, then. The technique currently works for string (default Web Component behavior), number, boolean, array, and object.

Be aware, that the automatic recognition of the data type is only possible if the value is provided as nativ type. This example will work:

<app-comp cnt={100}></app-comp>

In this example the value is recognized as string. It will remain a string event if you declare the observed attribute as number in the model type and @Properties decorator. Both settings are pure TypeScript features. they get stripped and will not be available at runtime. The render code will analyse the given object, that's only what's still available.

<app-comp cnt='100'></app-comp>

However, if you set the type by yourself, you can enforce the setting you wish. Be aware, that the type conversion must be possible by JavaScript to avoid runtime exceptions. See this example:

<app-comp cnt='100' n-type-cnt='number'></app-comp>

Here the JSX transformer will see the type string. But at runtime the additional attribute enforces a conversion back to number and keeps that type.

The following example is not valid code. The type is recognized internally and the very same type attribute is created. So it would finally exist twice. While this will not necessarily result in an runtime error, the behavior is unpredictable and it can change in future versions.

// this is illegal, the type is recognized internally
<app-comp cnt={100} n-type-cnt='number'></app-comp>

For extremely huge complex objects this technique might produce a performance penalty due to repeatedly used JSON.parse / JSON.stringify calls. Be also aware that this cannot work if the object has recursive structures, because the JSON class cannot deal with this. There is no additional error handling to keep the code small, it's just a try/catch block that reports the native error.

Properties and Models#

For a nice looking view some decorators applied to class properties control the appearance.

export class Model {
  id: number = 0;
  name: string = '';
}

@CustomElement('app-main')
@Properties<Model>({ id: 0, name: '' })
export class MainComponent extends BaseComponent<Model> {
  // ... omitted for brevity
}

Within the component, this model now present. In the above definition this.data contains an actual model. The forms module contains a more sophisticated way to handle a view model with bi-directional data binding. the properties discussed here are for access from a parent component, while the form's module view models handle this internal binding.

The settings of the decorator @Properties are the defaults, if no attributes are set. However, even if the existence of a default is not necessary, you must provide values here. This is due to the runtime behavior, where JavaScript requires a real type to create the instance properly. The generic in both places, the decorator and the base class, helps TypeScript to understand the model type and is mainly to support an excellent editor experience.
